Overview

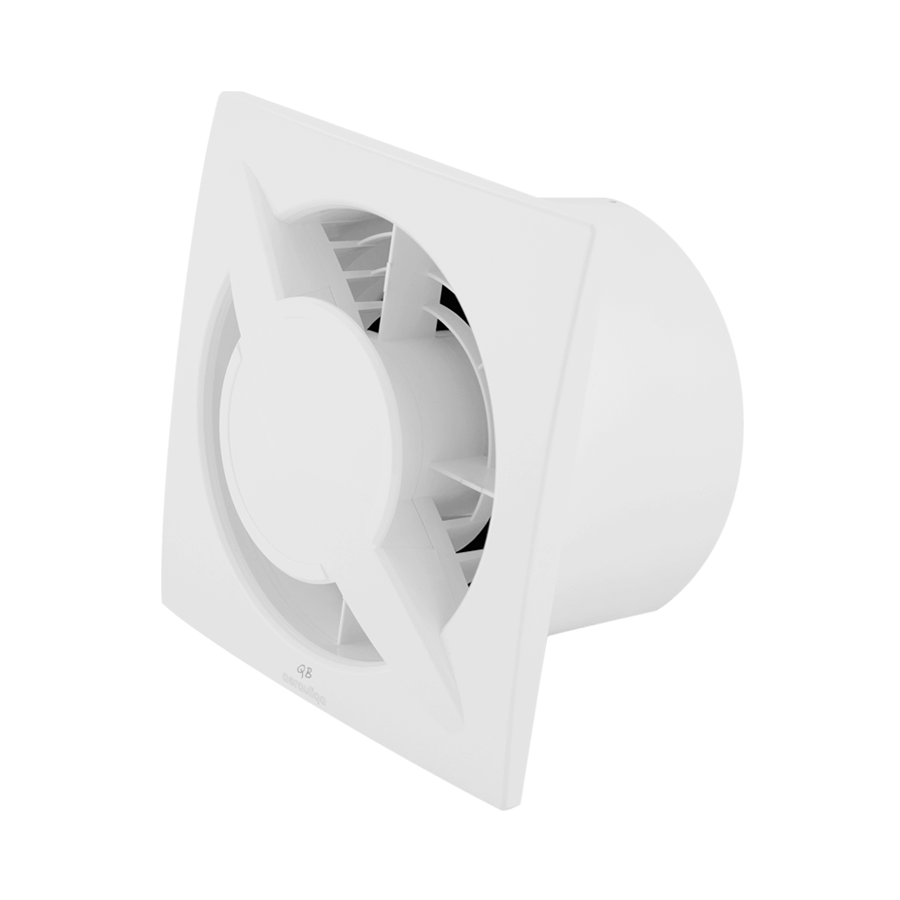

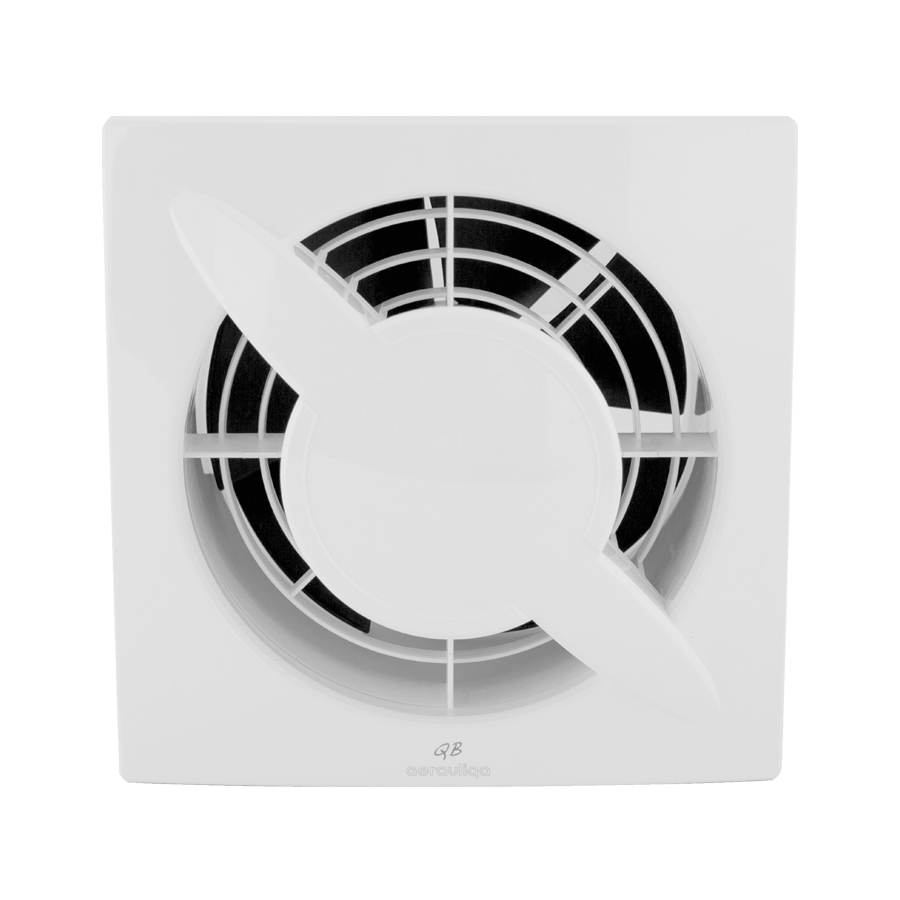

The QB axial fan has a clean design and is quick to install in either the wall or ceiling. It is available in 100 and 150mm models.
- Product Overview
Downloads
Features and Benefits
Easy installation
The QB can be easily and quickly installed in either a wall or roof application. Suitable to extract air directly outside or through a short length ducting.
Efficient performance
The design and construction of the QB Series impeller and spigot created a highly efficient extraction fan, with the QB100 using less than 8W of power.
Protection
QB100 and QB150 contain internal thermal protection via fuse. Double insulated so no earth connection is required.
Quality and testing
All units are to be tested to ISO 5801:2007 (airside performance) and ISO 3741:2010 (sound performance).
Warranty
Each QB Series fan comes with a 2 year manufacturer warranty as standard.
Specification
Construction

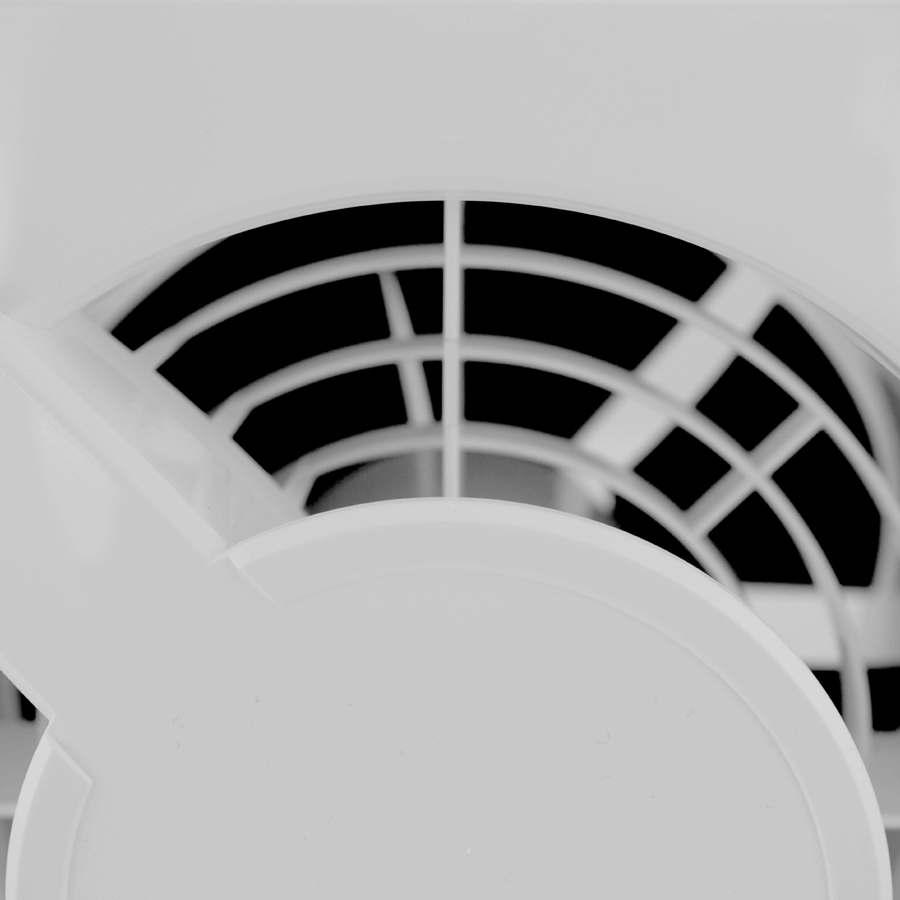

Fan housing made from high quality technopolymer which is shock proof and long lasting. Finished in white RAL 9010 and UV Resistant, the QB Series is constructed to suit a wide range of applications. Complete with optimised spigot to prevent distortion and strengthen guard to maximise airflow. The grille can be easily removed for cleaning.
Motor
Single-phase induction motor with integral thermal protection, mounted on sealed for life high quality sleeve bearings, requiring an electricity supply of 220-240V, 50/60Hz. Due to use in damp areas, the motor is class II insulated with an ingress protection rating of IPX4.
Impeller
The QB Series boasts a unique design winglet-type impeller, which provides enhanced aerodynamic properties, low noise levels and increased efficiency.
