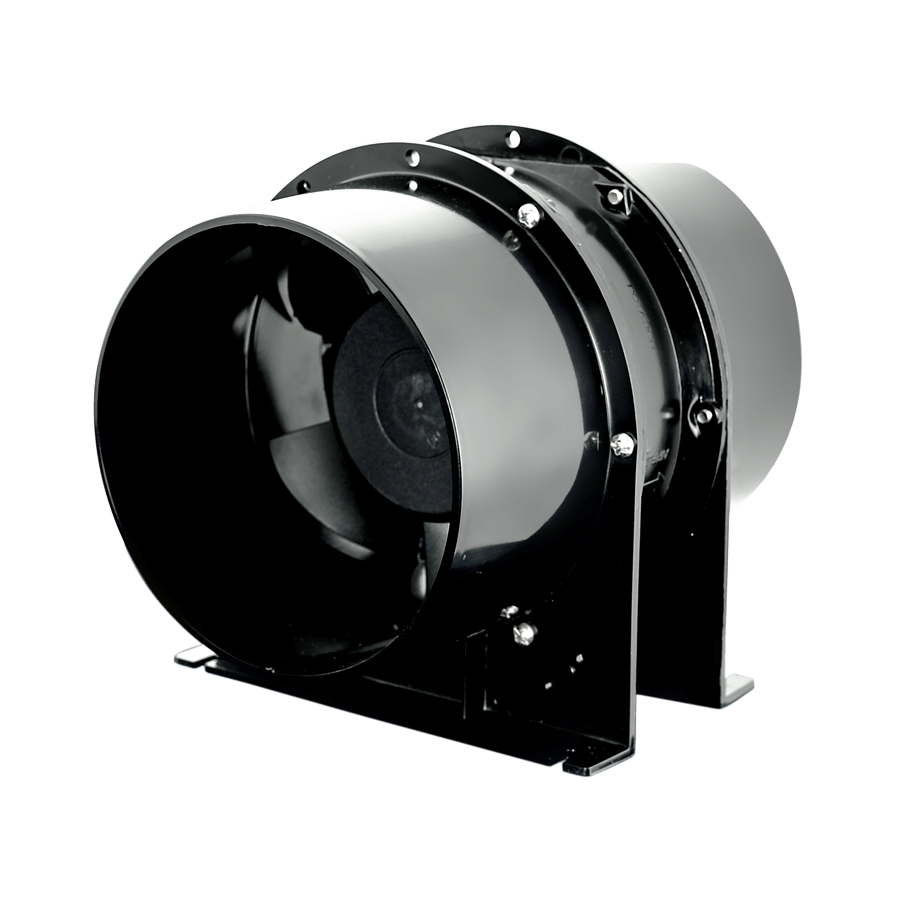

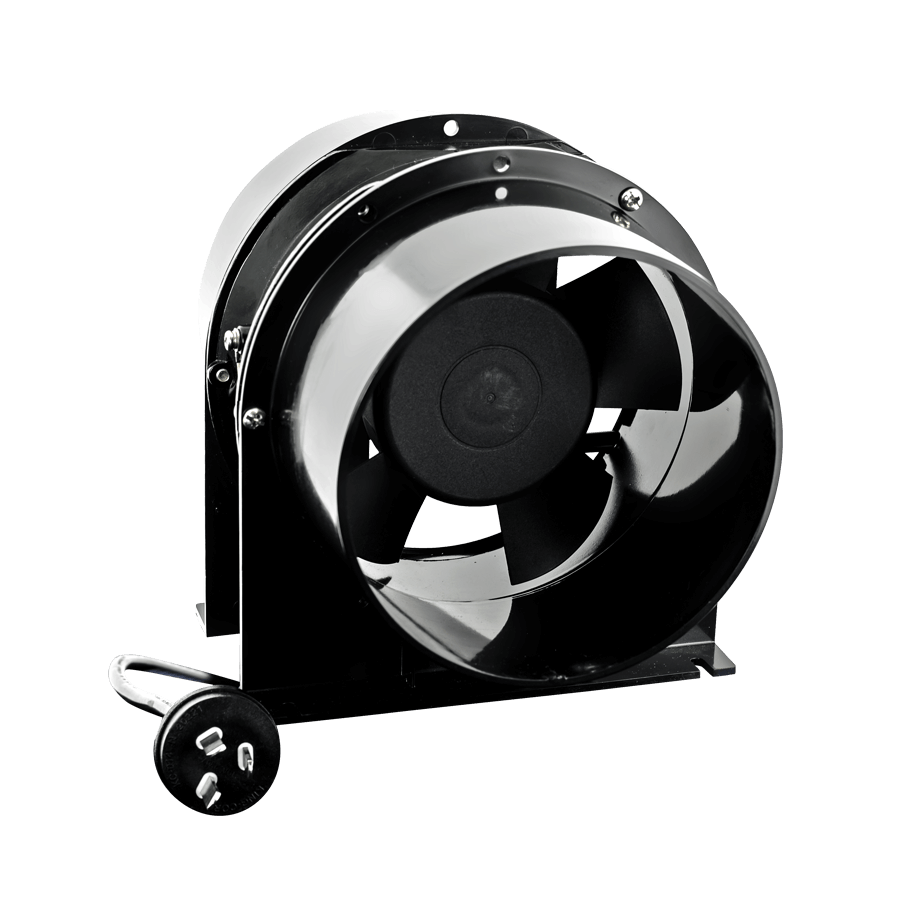

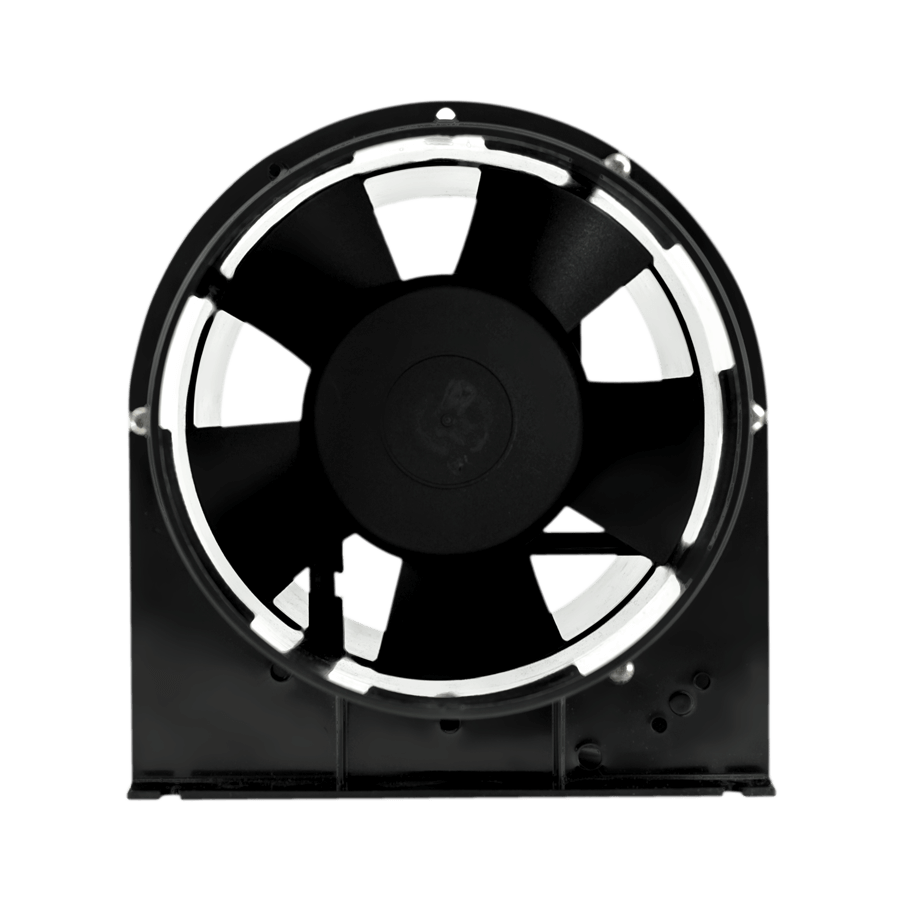

Minitube
Duct Mounted Axial Fan
- Choice of two light-weight but robust housing materials, metal or injection moulded plastic.
- Available in a range of speeds.
- MTP range matches 150, 200, 250 and 300mm standard duct sizes.
- Can be speed controlled.
- Can be mounted in any position.
- An extensive range of matching ancillary equipment is available.
SKU: EFAP-35
Got a question about this product?
Compatible Accessories
Overview
The Minitube Series of duct mounted axial fans is suitable for domestic, commercial and industrial ventilation applications. Available in 5 sizes ranging from 150 to 350mm diameter. They can be supplied with plastic housings from 200 to 300mm diameter and metal from 150 to 350mm diameter.
- Product Overview
Downloads
Features and Benefits
Design
These compact duct mounted axial fans come in two models that can be mounted in any position. Plastic version is suited to domestic and commercial installations. Steel version provides a robust alternative for commercial and industrial applications.
Protection
All models have manual reset protection fitted as standard.
Testing
All units are tested to ISO5801:2004 (airside performance) and BS848:Part 2, 1985 (sound performance).
Specification
Construction
The MTP132 is manufactured with aluminium fan housing with plastic spigots. Casing for MTP ranges 200 to 300mm diameters are manufactured with ABS injection moulded plastic. The MTS range, 200 to 350mm diameter is manufactured with powder coated steel.
Impellers
All models are built with high strength powder coated steel impellers.
Motor
The fans are built with external rotor squirrel cage induction motor with sealed for life ball bearings. The motor requires an electricity supply of 230V, single-phase, 50/60Hz. The motor is rated IP44.
Control
The units are suitable for speed control.
