HIT

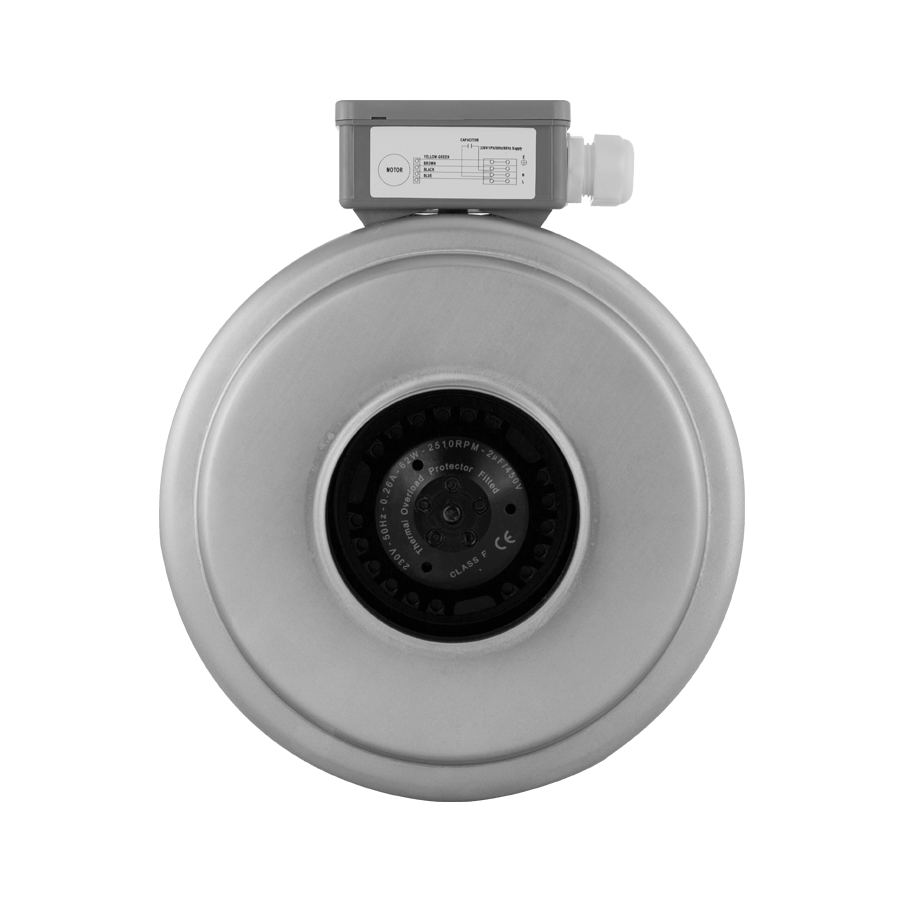

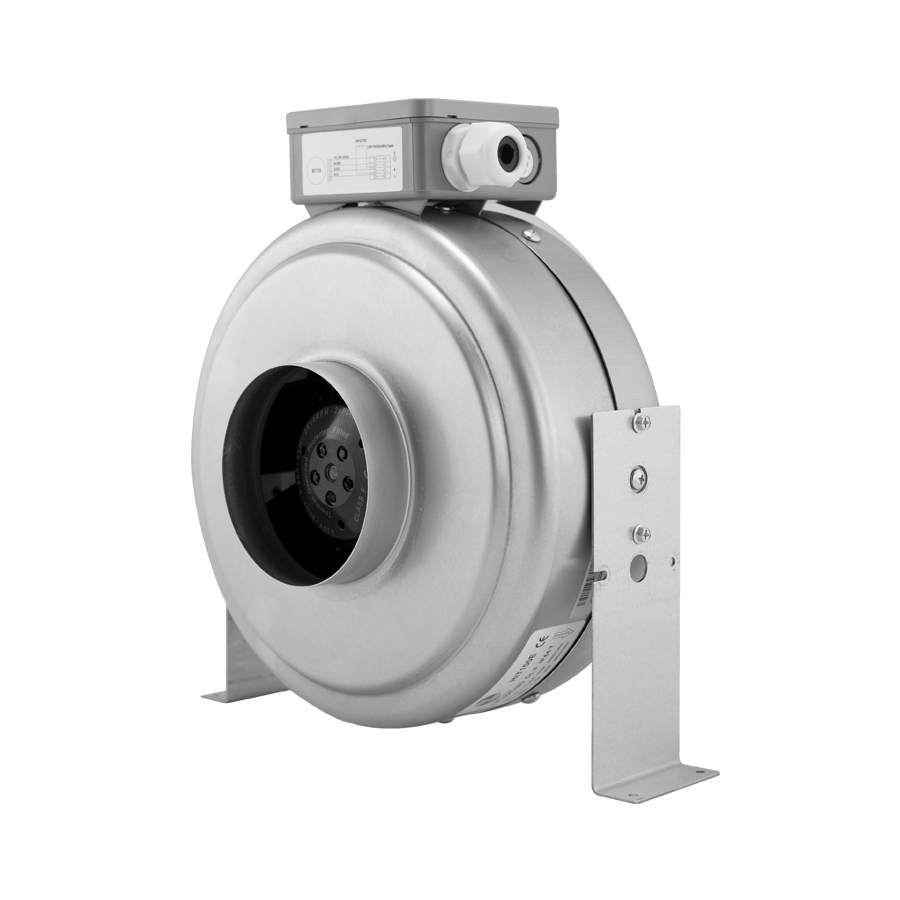

Duct Mounted In-line Centrifugal Fan

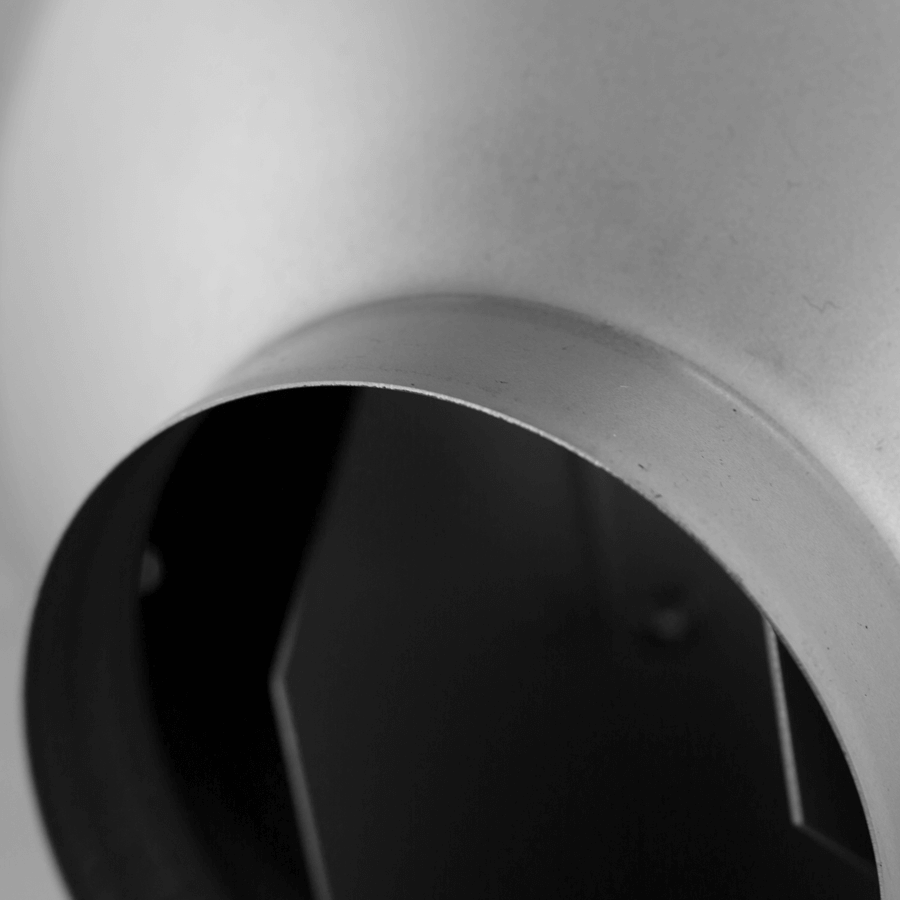

- Available in 7 models to suit 100 to 315mm diameter spigot sizes.
- Housing is manufactured from DX56 galvanised steel, rotor has an aluminium casing.
- Backward curved impellers create a strong reliable airflow and a stall free performance.
- Ball bearing motor for long lifespan.
- External rotor AC motor.
- Motors and impellers are balanced to G6.3.
- Built in non self-resetting thermal cut off.
- Rated IP44.
- Class F insulation.
SKU: EFAP-26
Got a question about this product?
Compatible Accessories
Overview
The HIT Series of duct-mounted centrifugal in-line fans is designed
to exhaust or supply air to a wide range of applications. This
powerful in-line fan is perfect for direct duct connection. All metal
galvanised body means the fan will last under hard wearing
applications. Backward curved impellers create a strong reliable
airflow and a stall free performance. Available in 7 models to suit
100 to 315mm spigot sizes.
- Product Overview
Downloads
Features and Benefits
Design
These duct-mounted centrifugal in-line fans are designed to exhaust or supply air to a wide range of applications. They are perfect for direct duct connection. All metal galvanised body means the fan will last under hard wearing applications.
Protection
Built in non self-resetting thermal cut off.
Quality Management
Motors and impellers are balanced to G6.3.
Specification
Construction
The housing is manufactured from DX56 galvanised steel, rotor has an aluminium casing that is made to last.
Impellers
Backward curved impellers create a strong reliable airflow and a stall free performance.
Control
Speed-controllable external rotor motor.
Motor
The fans are built with external AC rotor motors with sealed for life ball bearings. The motor requires an electricity supply of 230V, single-phase, 50/60Hz. Maximum ambient temperature is 50℃. All units have Class F insulation and are rated IP44.
