QIN

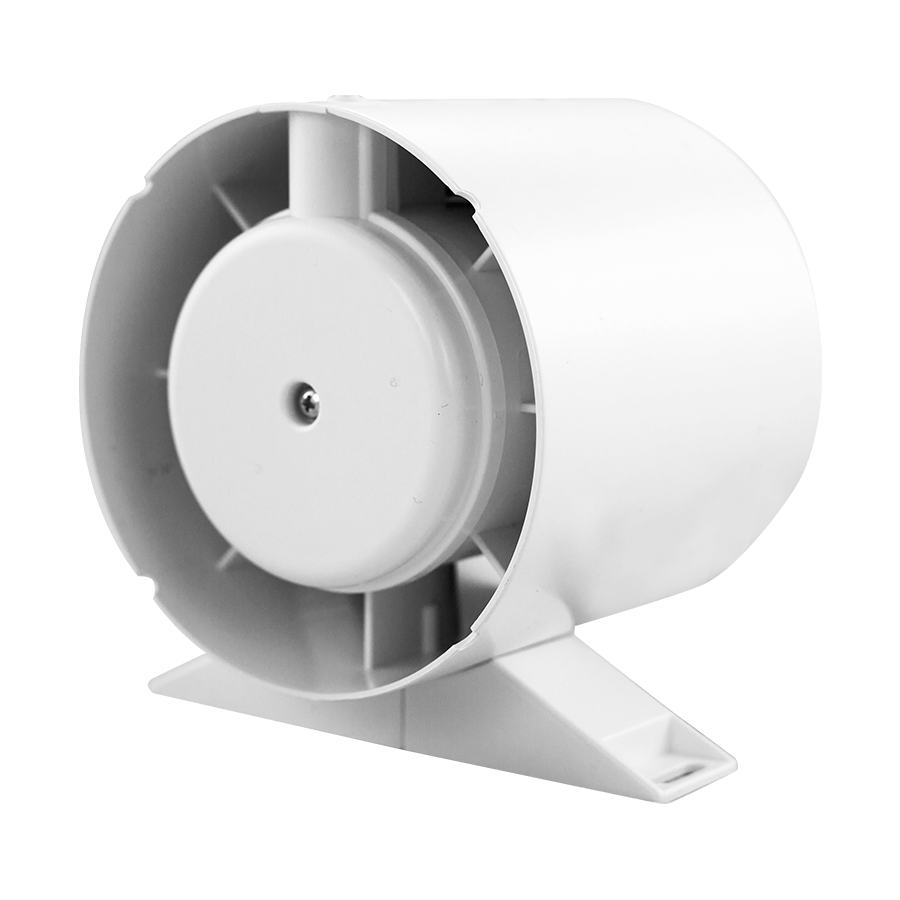

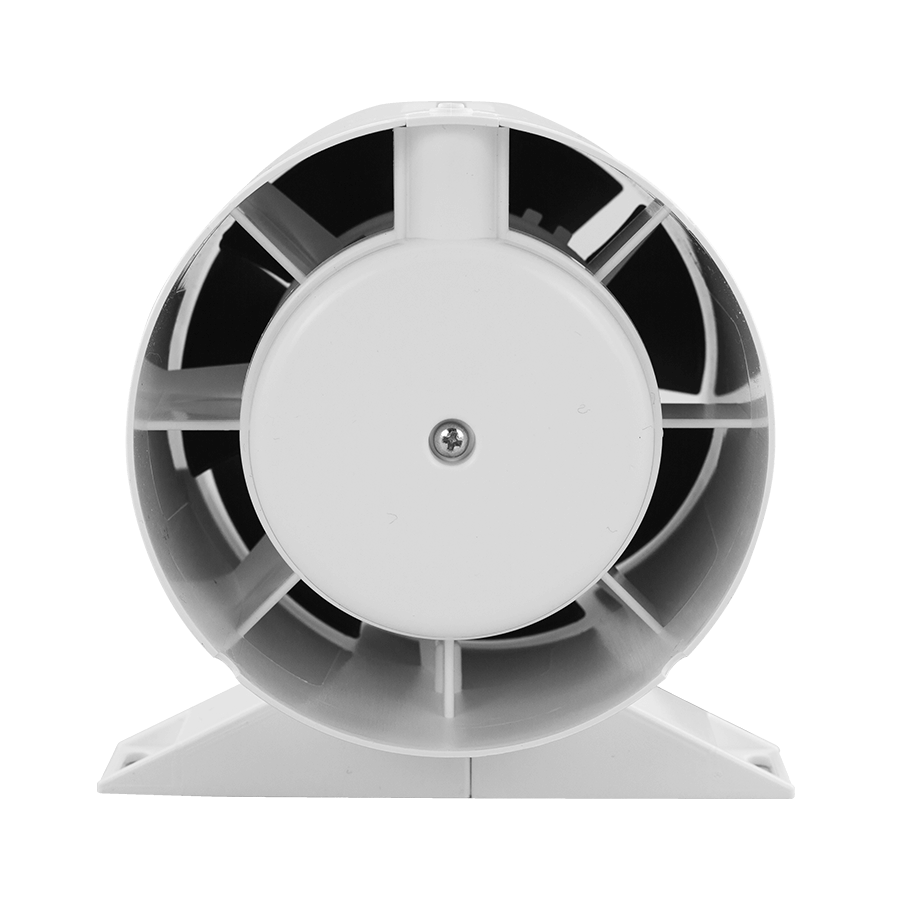

Intermittent Axial Fan
- Unique design winglet-type impeller, providing enhanced aerodynamic properties, low noise levels and increased efficiency.
- Low power consumption with fan consuming less than 8 watts of power for 100mm model.
- Single-phase induction motor with integral thermal protection, mounted on sealed for life high quality sleeve bearings.
- Double insulated so no earth connection is required.
- Available in Standard and run-on timer versions.
- Suitable for continuous and intermittent running.
- Mounting foot available upon request.
SKU: EFAP-73
Got a question about this product?
Compatible Accessories
Overview
The QIN Series are designed to be used with ducted ventilation solutions. This in-line domestic intermittent axial fan is suitable to extract stale air directly outside or through short length ducting. Available in 3 sizes to suit 100, 125 and 150mm duct.
- Product Overview
Downloads
Features and Benefits
Easy Installation
The QIN Series fans are slim and simple to set up and operate. Making it ideal for air extraction in bathrooms, toilets, laundries, kitchens and other small to medium spaces in homes, hotels and apartments.
Efficient Performance
The QIN’s single-phase induction motor, mounted on sealed for life high quality sleeve bearings allow for optimal performance, causing the fan to consume less than 8 watts of power (QIN100 model).
Protection
QIN100, QIN125 and QIN 150 contain internal thermal protection via fuse. Double insulated so no earth connection is required.
Quality and testing
All units are to be tested to ISO 5801:2007 (airside performance) and ISO 3741:2010 (sound performance)
Warranty
Each QIN Series fan comes with a 2 year manufacturer warranty as standard.
Specification
Construction
The QIN fan housing is made from high quality ABS which is shock proof, long lasting and finished in white RAL 9010 and UV resistant.
Motor
Single-phase induction motor with integral thermal protection, mounted on sealed for life high quality sleeve bearings, requiring an electricity supply of 220-240V, 50/60Hz. Due to use in damp areas, the motor is class II insulated with an ingress protection rating of IPX4.

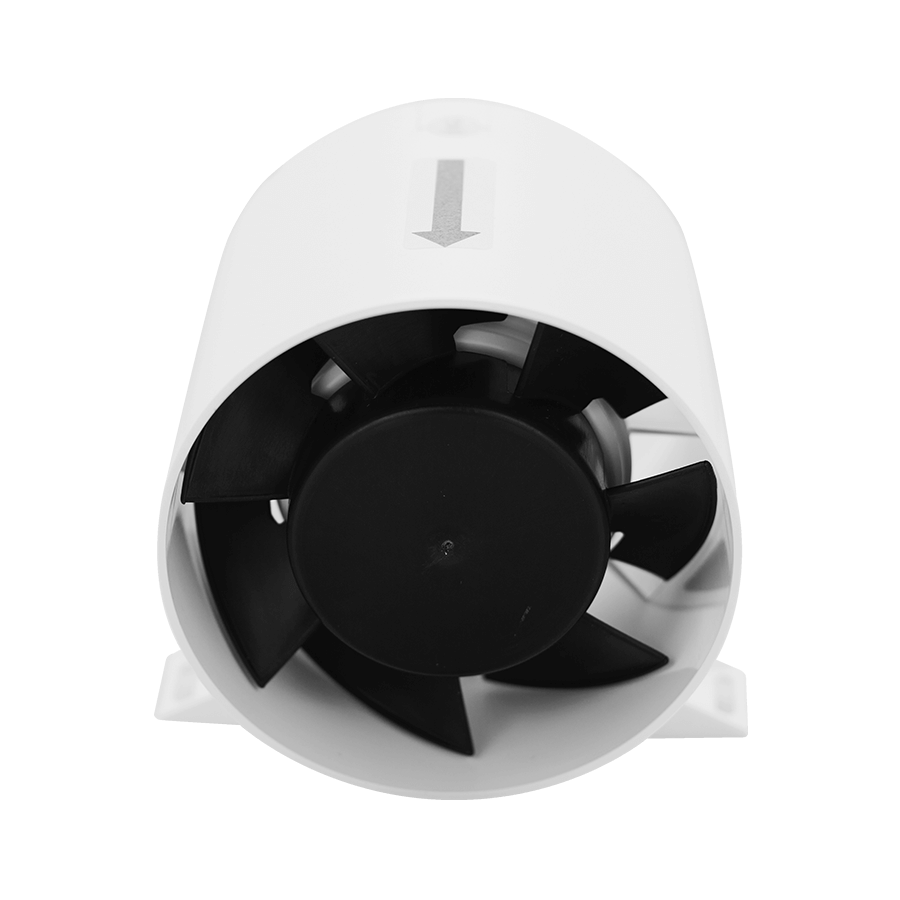

Impeller
The QIN uses a unique design winglet-type impeller, providing enhanced aerodynamic properties, low noise levels and increased efficiency.
