ZOO
Zone Of Occupancy Fan
- Can be installed so its airflow avoids or targets areas.
- Adjustable airflow using a VA speed controller.
- Model with finger guards on inlet and outlet available.

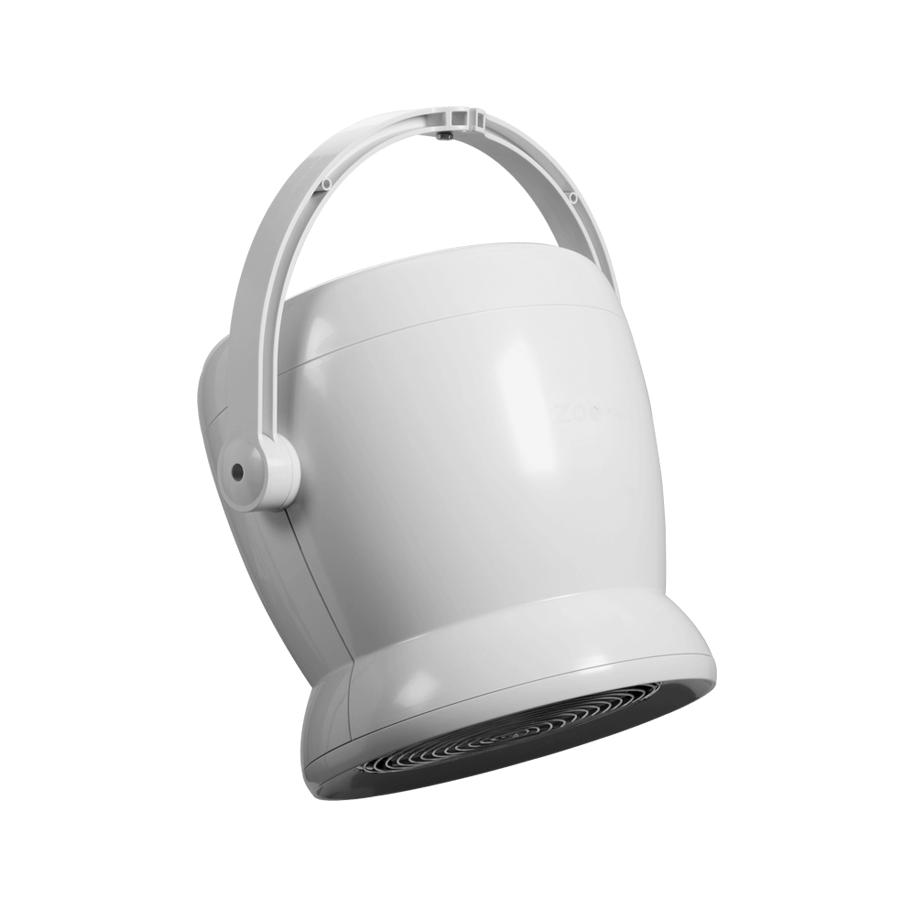

- Pivoting handle allows quick change to airflow direction.
- Fire resistant (5VB) UV-treated PC ABS plastic.
- Fitted with Gripple attachments that make it quick and easy to install.
SKU: EFAP-64
Got a question about this product?
Compatible Accessories
Overview
The stylish ZOO (Zone Of Occupancy) Fan de-stratifies by producing a gentle, concise column of air that draws warm air from the ceiling and forces it down to floor level. By doing this it helps create a more pleasant and comfortable indoor environment for workers and customers. It can also help to lower a building’s operating costs by reducing the energy consumption of a heating system in cooler weather. Available in 2 sizes, 250 and 300mm.
- Product Overview
Downloads
Features and Benefits
Smart Design
ZOO fans are particularly effective when used in aisles because of their narrow band of air and variable speed control motor that provides airflow adjustment. They can be also used as a quiet and unobtrusive cooling fan in warmer weather. The units are fitted with gripple attachments that make it quick and easy to install. The pivoting handle allows quick change to airflow direction.
Protection
Auto-reset thermal protection.
Testing
All units are tested to DIN24166, Class 1 (airside performance) and DIN3745, Class 1 (sound performance).
Specification
Construction

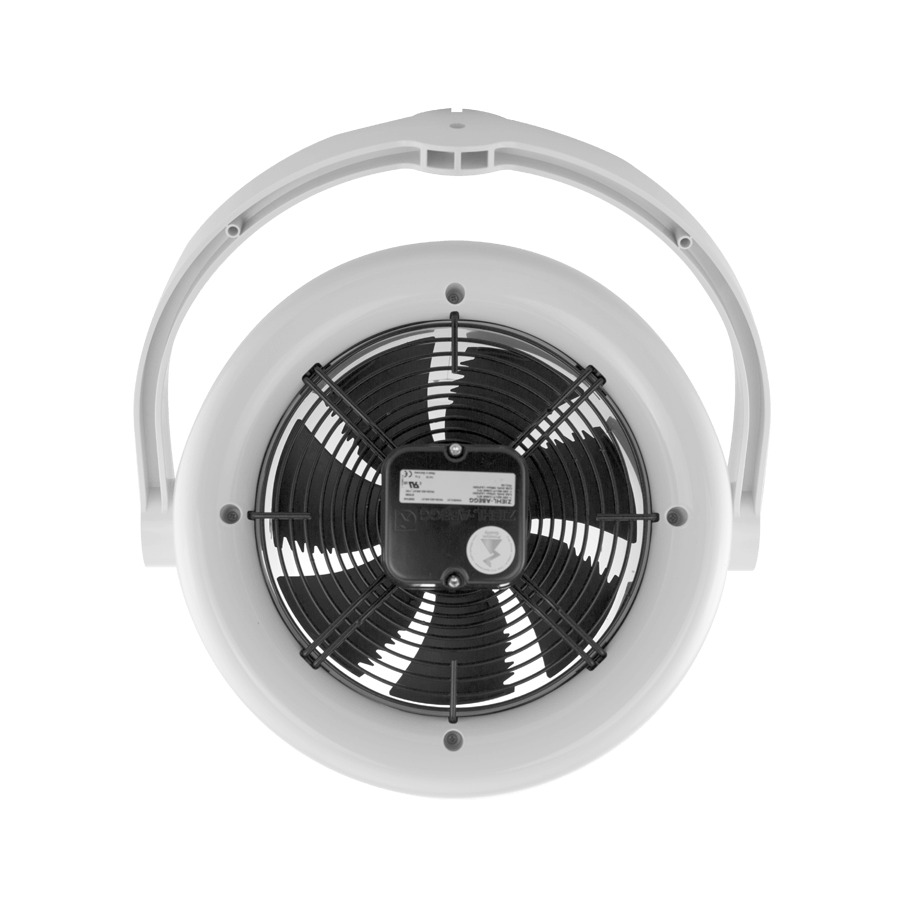

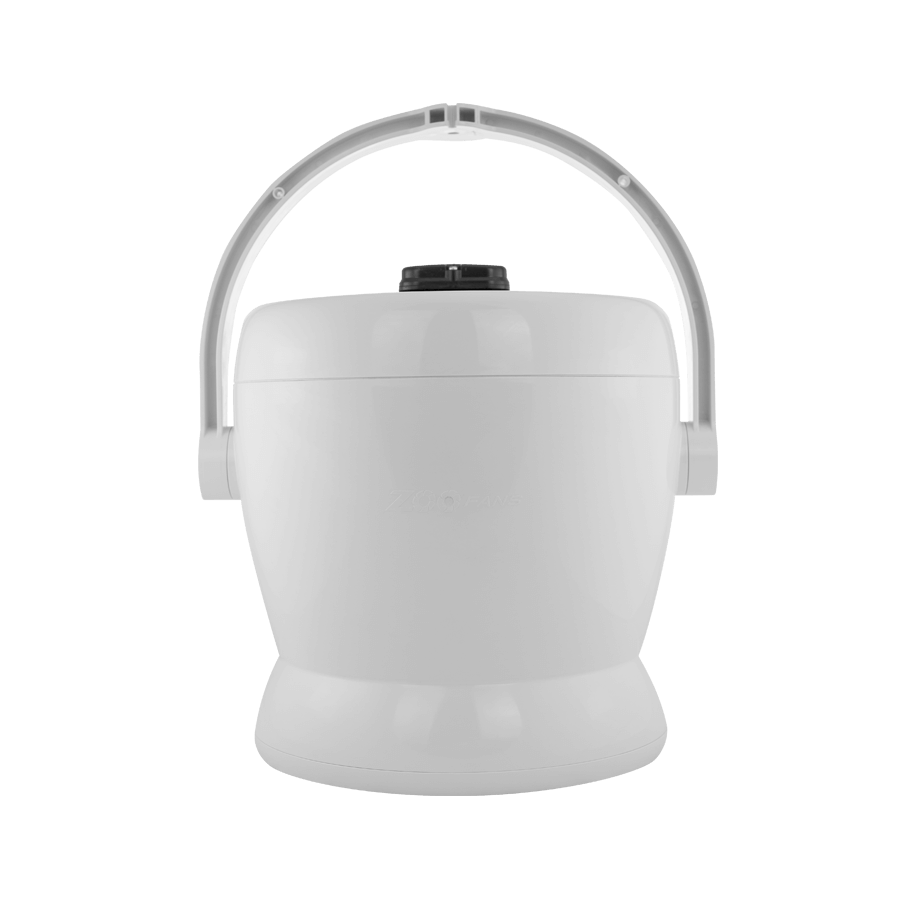

The fans are manufactured with UV-treated PC ABS plastic housing that is fire resistant (5VB). They are fitted with a robust pivoting handle and gribble attachments for easy installation. All units are fitted with an easy to reach IP54 terminal box. Wire finger guards (if fitted) are manufactured from Zinc plated wire.
Motor
The fans are built with external rotor, squirrel cage induction motors with sealed for life ball bearings. The motor requires an electricity supply of 220-240V, single-phase, 50/60Hz. The motor is rated IP54.
Control
Units are speed-controllable.
Additional Information
Finger guards must be fitted to fans if being mounted less than 2.1 metres from floor level. Codes for additional grilles are ZFH30G and ZFH60G.
