Silent Response
Ducted Ceiling Exhaust Fan
- Advanced impeller and housing design provides powerful airflow and minimises noise.
- High strength swing clips make installation easy.
- Low resistance non-return backdraft damper maximises airflow performance.
- Easy to remove diffuser grille makes cleaning simple.
- Can be retrofitted into a standard 10” round fan cut out.
- Available with a 3 to 15 minute adjustable run-on timer.
- Choose from a number of stylish grilles.
SKU: EFAP-78
Got a question about this product?
Compatible Accessories
Overview

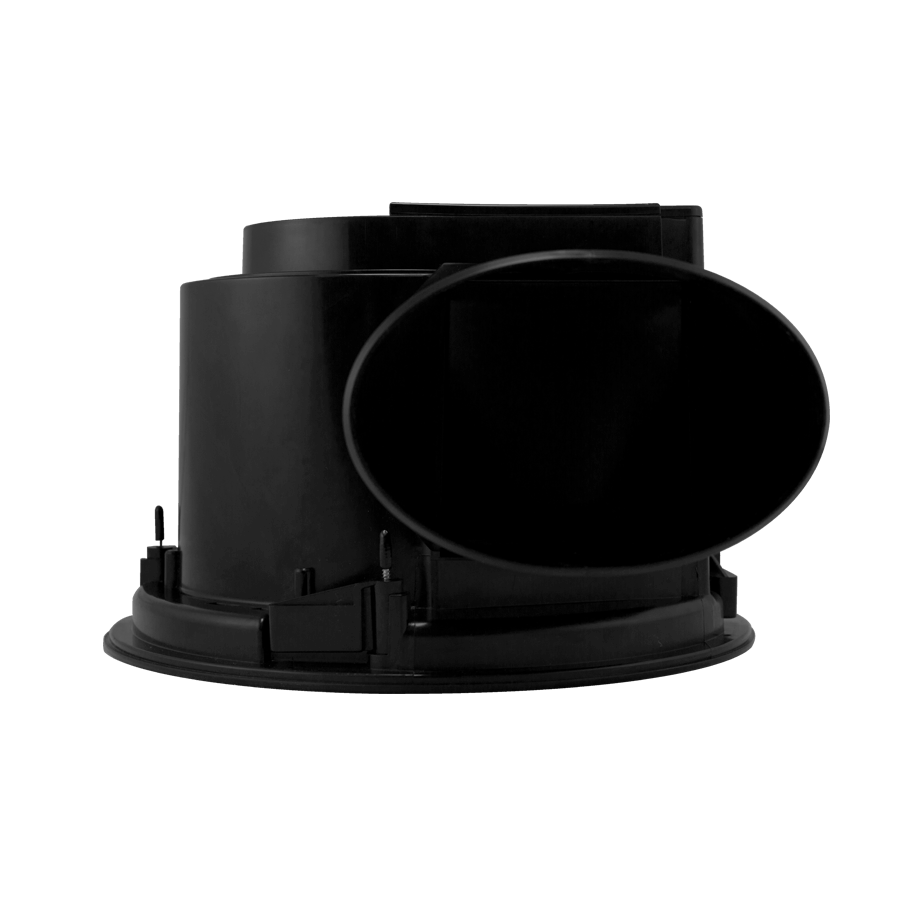

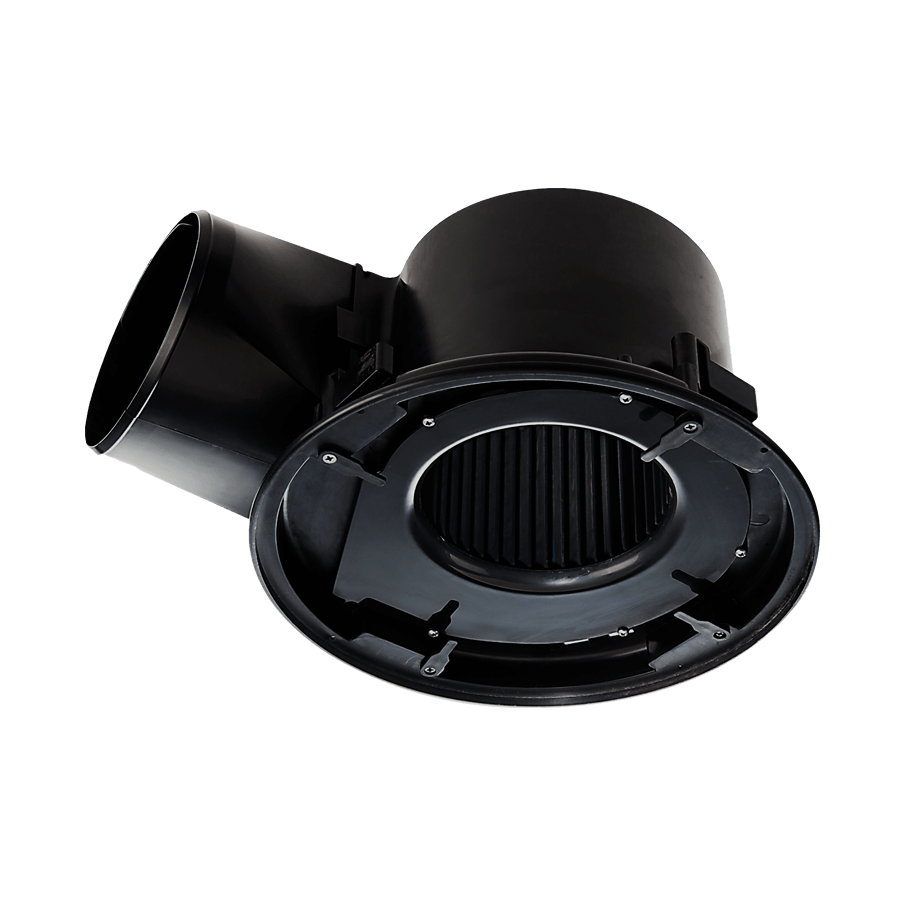

The Silent Response ducted ceiling exhaust fan features quiet operation and powerful airflow performance. It includes a fully optimised inlet cone and centrifugal impeller that maximises air pressure and ensures rooms are quickly cleared of steam and unpleasant odours. It includes a unique swing clip and removable spigot that makes it very easy to install into a standard 10” round fan cut out.
- Product Overview
Downloads
Features and Benefits
Flexible applications
The Silent Response ducted ceiling exhaust fan provides powerful exhaust from residential or light commercial applications such as toilets, bathrooms, laundries, kitchens and ensuites. The low profile compact design and side exhaust outlet makes this fan suitable for mounting between floors and applications with low ceiling heights such as cathedral ceilings.
Protection
For added safety, automatic reset thermal protection is fitted as standard to all Silent Response units.
Testing
The Silent Response unit is tested to ISO 5801:2007 for airflow performance and ISO 3744:210 for sound performance.
Warranty
All Silent Response units come with a 5 year manufacturer warranty as standard.
Specification
Construction
The fan housing and diffuser are made from injected moulded polypropylene, resulting in a tough, long lasting unit. All parts of the fan have been aerodynamically engineered to allow air to flow through the fan with the least possible resistance, resulting in powerful performance matched with smooth and quiet operation.
Impeller
Specially designed toughened forward curved centrifugal impeller with an optimised variable radius inlet path. Blades positioned at specific angles and intervals to achieve maximum airflow and efficiency resulting in more power, less noise and a long life span.

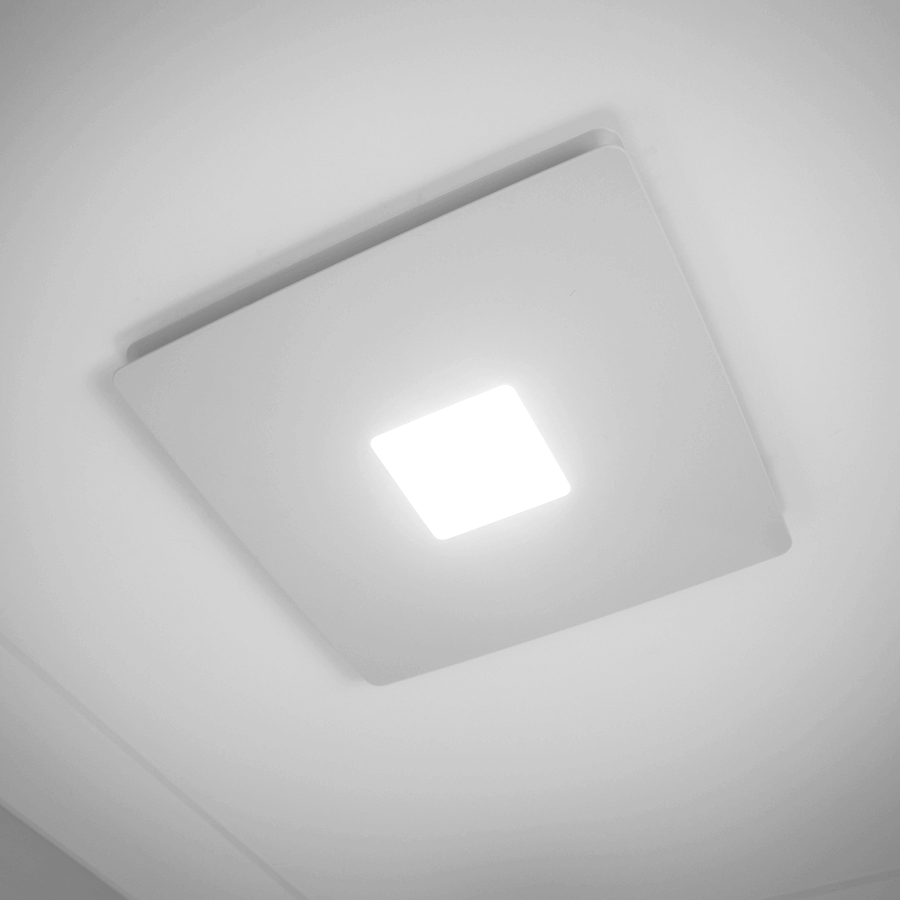

Grilles
With a range of stylish grilles to choose from, you can get the right grille to suit your décor. Response Series grilles are available in standard or LED variations in both white and black with a modern square or round face.
Motor
The impeller is driven by a high quality squirrel cage induction motor, featuring “sealed for life” ball bearings and requiring an electricity supply of 230V, 50Hz (single phase).
